Machines builtto never stop.
The OLT-D continuous carbonization machine is the main equipment for biochar production: PLC-controlled end to end, heated by its own pyrolysis gas once running, and designed for months of continuous duty.
The line, machine by machine
Crush. Dry.Carbonize. Mold.
Every drawing here is one of Olten's catalogue machines, running. Together they make a complete charcoal line.
01
Crush
02
Dry
-
01Crush and dry
Feed must be ≤ 15 % moisture and ≤ 30 mm. Material that doesn't meet this is crushed and dried first.
-
02Preheat to 350–400 °C
The drum is heated by natural gas, diesel or LPG through the heating nozzle before any material enters.
-
03Feed and carbonize
A sealed hopper with a limit sensor and screw feeder keeps the drum airtight while biomass turns through it.
-
04Gas takes over
About 20 minutes after feeding, combustible gas forms. The induced-draft fan leads it to the combustion chamber, which heats the drum and cuts energy use.
-
05Reuse the heat
Part of the waste-heat flue gas dries incoming feed; the rest can fire a boiler. Exhaust leaves through dust removal and flue-gas treatment.
Feed must be ≤ 15 % moisture and ≤ 30 mm. The drum is heated to 350–400 °C before feeding; about 20 minutes after feeding starts, combustible gas forms and the induced-draft fan returns it to the combustion chamber, which then heats the drum.
04
Mold
Why it runs for months
Fourteen systems, engineered as one.
-
01
Feeding
U-type, tube or large-inclination belt feeders, chosen for the material and site.
-
02
Airtight inlet
Hopper with a limit sensor keeps the drum sealed.
-
03
Main drum
304 stainless steel for heat and corrosion; other grades on request.
-
04
Insulation
Ceramic-fibre modules: dense, heat-resistant, no shrinkage.
-
05
Discharge
Water-cooled discharge conveyor: good cooling, low cost.
-
06
Induced draft
304 stainless impeller with a special seal: no leakage.
-
07
Heating
Direct heating with natural gas, diesel or LPG, PLC temperature control.
-
08
Transmission
Inner-cylinder drive keeps the gear ring and riding rings away from heat.
-
09
Combustion chamber
Cast high-alumina refractory for long high-temperature service.
-
10
Temperature monitoring
Integrated PLC with automatic control.
-
11
Sealing
Four dynamic seals on the drum, each with an 8-layer structure.
-
12
Purification
Full combustion in the chamber, exhaust treated before discharge.
-
13
PLC control
Manual and automatic modes; feed rate, drum speed, fan frequency, temperature and remote assistance.
-
14
Modular build
Dual support of host and chassis for fast installation and commissioning.
OLT-D series
Specifications
Configurations are customised to feedstock and site. Values from Olten's published OLT-D table.
| Specifications | OLT-D1000 | OLT-D1200 | OLT-D1500 | OLT-D1800 |
|---|---|---|---|---|
| Total power | 60.7 kW | 60.7 kW | 70.2 kW | 74.2 kW |
| Reducer | ZQ350 | ZQ350 | ZQ400 | ZQ400 |
| Drum (diameter × length) | 1024 × 12000 mm | 1224 × 12000 mm | 1528 × 12000 mm | 1828 × 12000 mm |
| Condenser | Ø1500 × 4000 mm | Ø1500 × 4000 mm | Ø1900 × 4500 mm | Ø1900 × 4500 mm |
| Spray tower | Ø800 × 3000 mm | Ø800 × 3000 mm | Ø1500 × 3500 mm | Ø1800 × 3500 mm |
| Cooling tower | 120 t | 120 t | 120 t | 120 t |
| Control system | PLC | PLC | PLC | PLC |
| Processing capacity | 800–1200 kg/h | 1200–1500 kg/h | 1600–2000 kg/h | 2800–3200 kg/h |
Full catalogue
From crushing to carbonization.
01
Crushing
- Double mouth crusher
- Double shaft shredder
- Wheel mill
- Drum chipper
- Integrated crusher
- Disc wood crusher
- Hammer mill
- Disc chipper
02
Drying
- Dispersal shaft dryer
- Rotary drum dryer
- Airflow dryer
03
Molding
- Shisha charcoal briquette machine
- Charcoal ball briquette machine
- Charcoal stick briquette machine
- Stamping charcoal stick briquette machine
- Wood charcoal briquette machine
04
Carbonization
- OLT-S carbonization machine
- OLT-D carbonization machine
- OLT-P273 continuous carbonization machine
- Hoisting carbonization furnace
- Horizontal carbonization furnace
OLT-P273
Integrated, movable frame; installs without foundation work. For sawdust, rice husk and coconut shell crushed below 10 mm and dried below 15 % moisture; a Z-shaped carbonization pipeline with a baffled discharge prevents blockage and leakage.
Production lines
Complete lines, designed as one scheme.
-
Charcoal stick briquette line
Long burning time, high calorific value, no smoke and no sparking.
-
Charcoal ball briquette line
Long burning time, high calorific value, no smoke and no sparking.
-

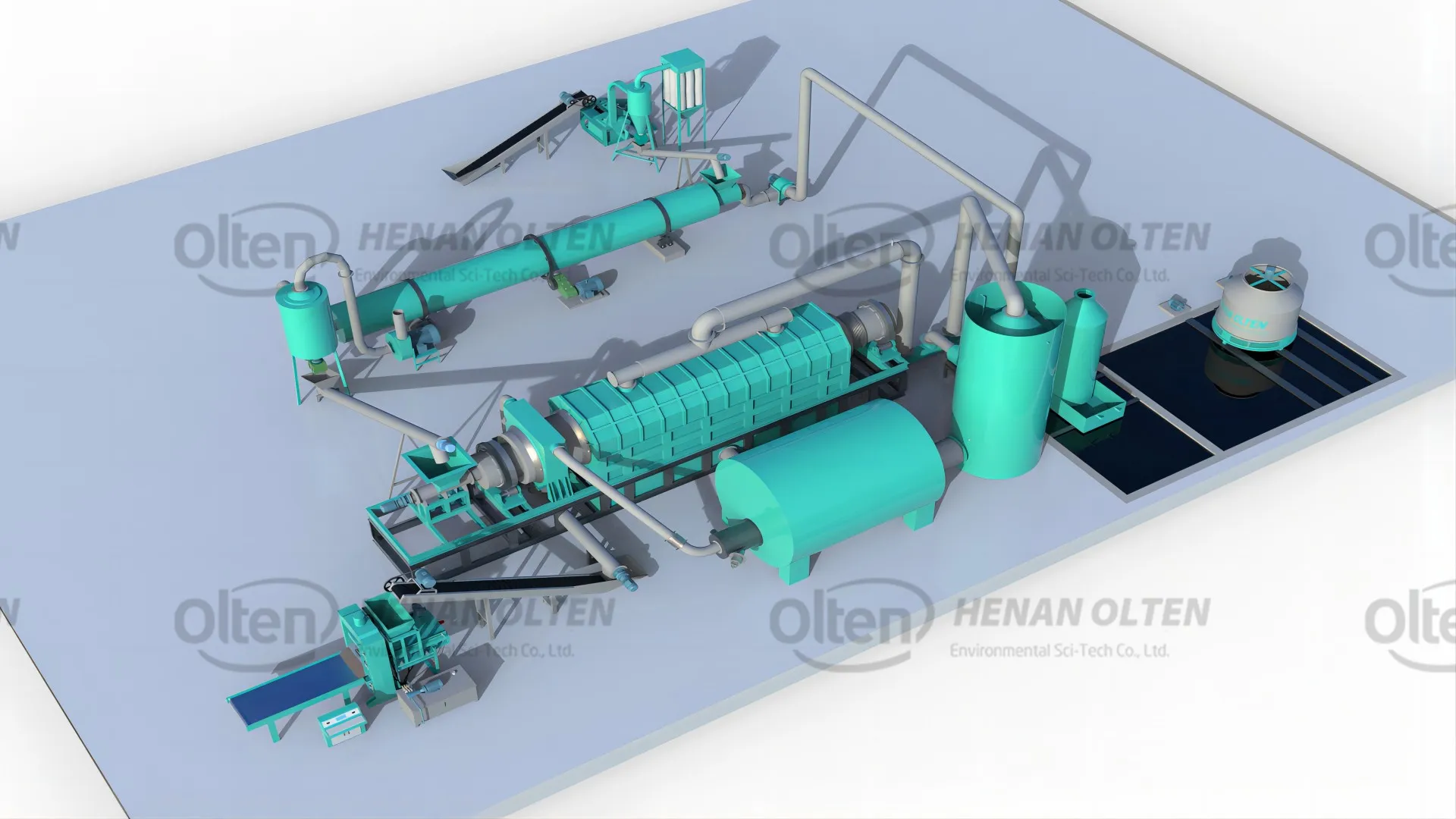

Shisha charcoal line
Long burning time, high calorific value, no smoke and no sparking.
Shipped
Lines working around the world.
- — Egypt Charcoal machine production line and accessories shipped to Egypt.
- 5 Sep 2022 Mexico Mesh belt dryer production line shipped to Mexico in a full container.
- 17 Apr 2022 Philippines Charcoal making machine production line shipped to the Philippines.
- Jan 2022 Namibia QHL-3 hoisting carbonization furnace shipped to Namibia.
- 2 Dec 2021 Philippines Charcoal stick briquette machine production line shipped to the Philippines.
Service
Service process
Line design for pellet and charcoal machines, from layout to commissioning.
Service
Quality testing
Equipment and material testing before shipment.
Service
After-sale service
Customer first, honesty, technological innovation, quality service: the first time to solve the problem for the user.
